Optical thin film and lithium battery coating machine brief introduction

Samheung machinery CO., LTD is a first-class enterprise in producing optical thin film coating machine, lithium battery coating machine, high- precision coating machine, slit coating machine in South Korea, which is the main supplier for Samsung, SK, LG. Shandong Increate machinery CO,. LTD, as SH’s office in China,responsible for all the pre-sale, sale, and after-sale work. We have the Korean engineer who can provide 24-hours after-sale service.Samheung machinery CO,. LTD has established for 33 years, which has rich application experience in the field of optical thin film and lithium battery coating machine and has the ability to provide overall solutions for our customers.

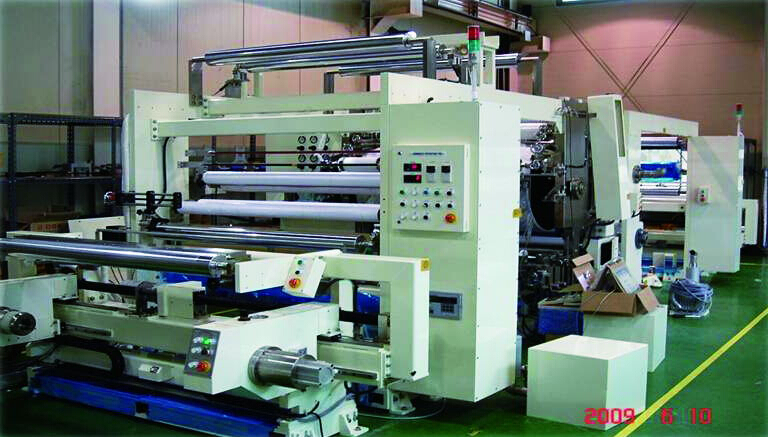

Optical thin film coating machine

Optical thin film coating machine parameter

1. Netting material: pet film (10-250μm)
2. Coiling block height: 900-1560mm
3. Coating system: slit coating, macrogravure
4. Feed roller: Vacuum driven roller
5. Machine speed: maximum 10-50m/min

Optical thin film coating machine application range

• Release film
• Silicon film
• Hard coating film
• Glue film
• Glass film
• Adhesive tape
• Double-sides adhesive tape
• Lithium coating machine

lithium coating machine parameter 1

1. Netting material: copper foil
2. Coiling block width: maximum 400mm
3. Coating system: slit coating, macrogravure
4. Coating thickness: 30-200μm & 3-5μm
5. Machine speed: maximum 15m/min

lithium coating machine parameter 2

1. Netting material: copper/aluminum foil
2. Coiling block height: maximum 1400mm
3. Coating system: slit coating(half cut use)
4. Coating thickness: 250μm
5. Machine speed:maximum 50m/min
